Agricultural machinery blades

Product Description We produce and customize non-standard agricultural machinery parts for many agricultural machinery companies, including castings, processed parts, etc. This product is a cutting tool for agricultural machinery and equipment. The material of its parts is No. 25 steel and it ...

Send request

 

Description

marker

Product Description

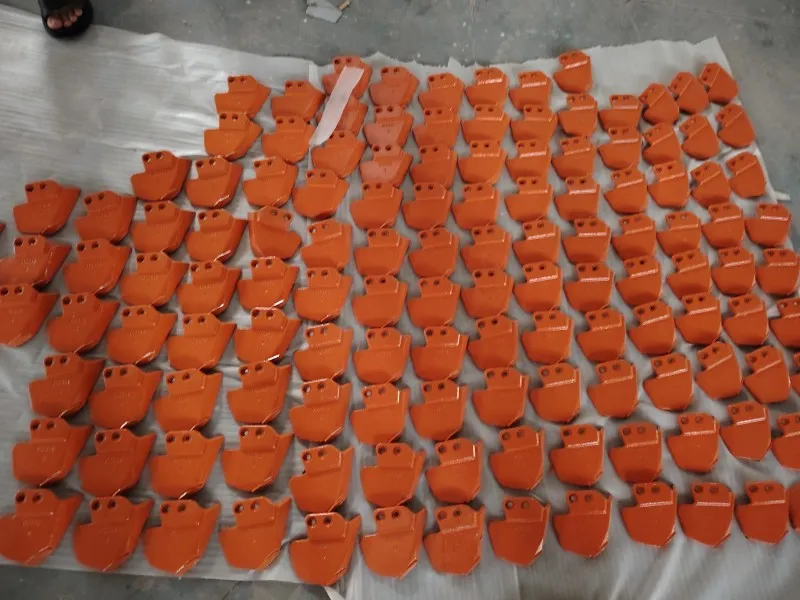

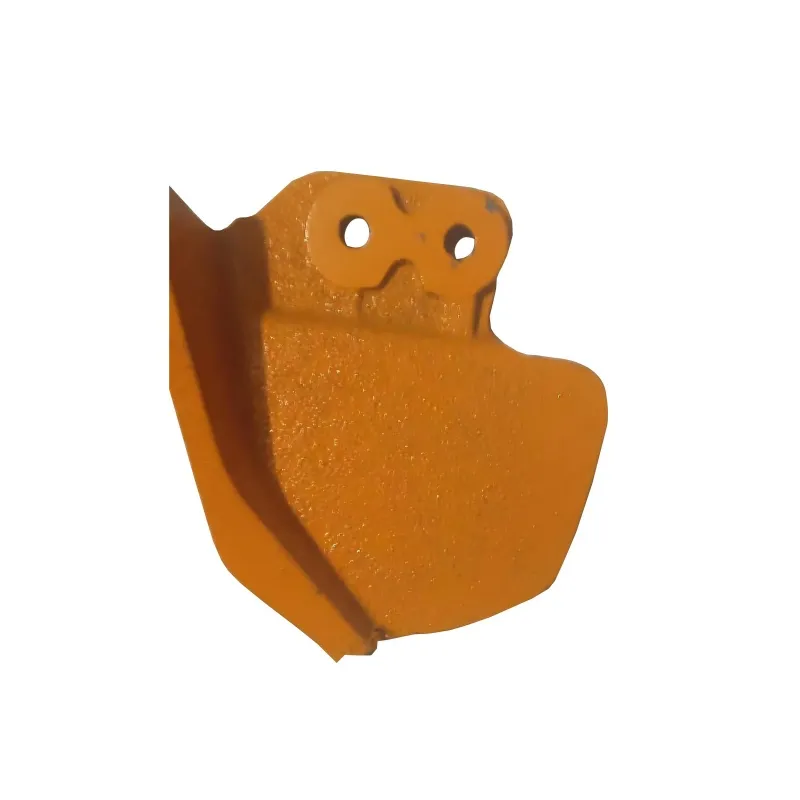

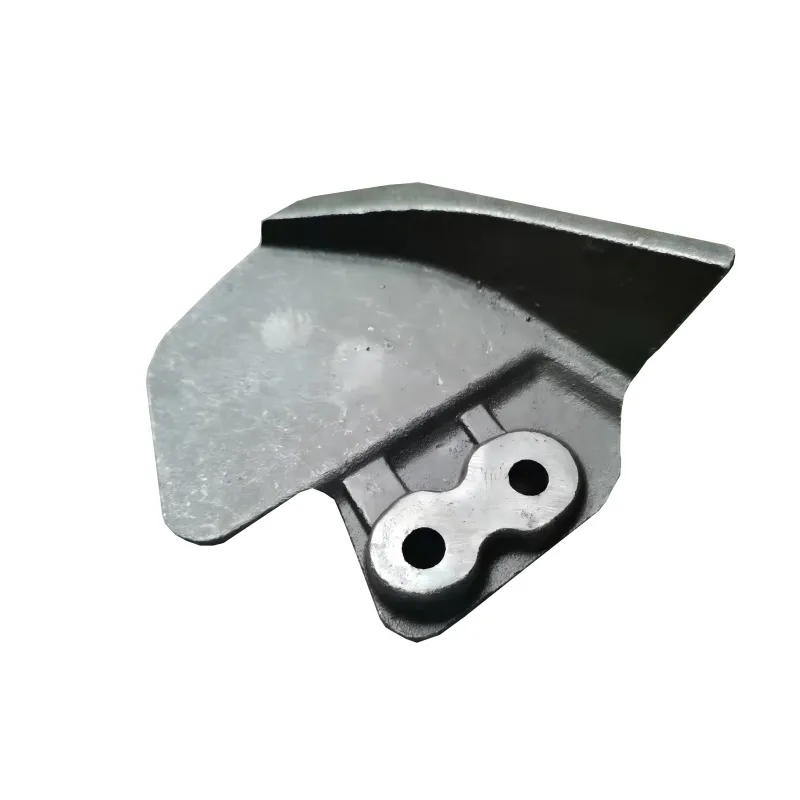

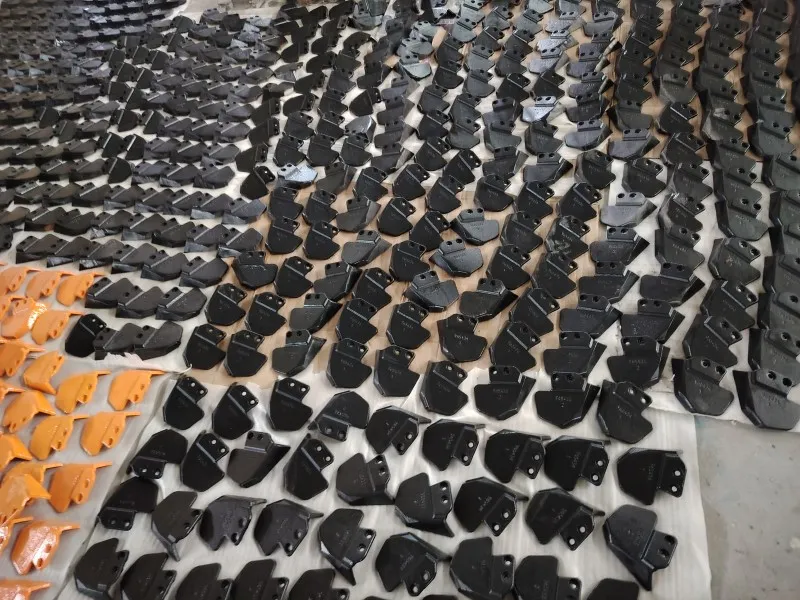

We produce and customize non-standard agricultural machinery parts for many agricultural machinery companies, including castings, processed parts, etc. This product is a cutting tool for agricultural machinery and equipment. The material of its parts is No. 25 steel and it is completed through shell film casting. After casting, tungsten steel blades are welded to the cutting surface to increase the service life of the parts, and finally, anti-rust painting treatment is carried out.

Material composition and mechanical property parameters:

Composition table of carbon structural Steel No. 25

Chemical Composition
Elements	C	Si	Cr	Mn	Ni	P	S	Gu	Fe
Percentage(%)	0.22-0.29	0.17-0.37	≤ 0.25	0.5-0.8	≤ 0.30	≤ 0.035	≤ 0.035	≤ 0.30	Bal.

Mechanical properties

Tensile strength (σb) : ≥ 450 MPa

Yield strength (σs) : ≥ 275 MPa

Elongation (δ5) : ≥ 23%

Reduction of area (ψ) : ≥ 50%

Brinell hardness: ≤ 170 HB (unheat-treated state)
