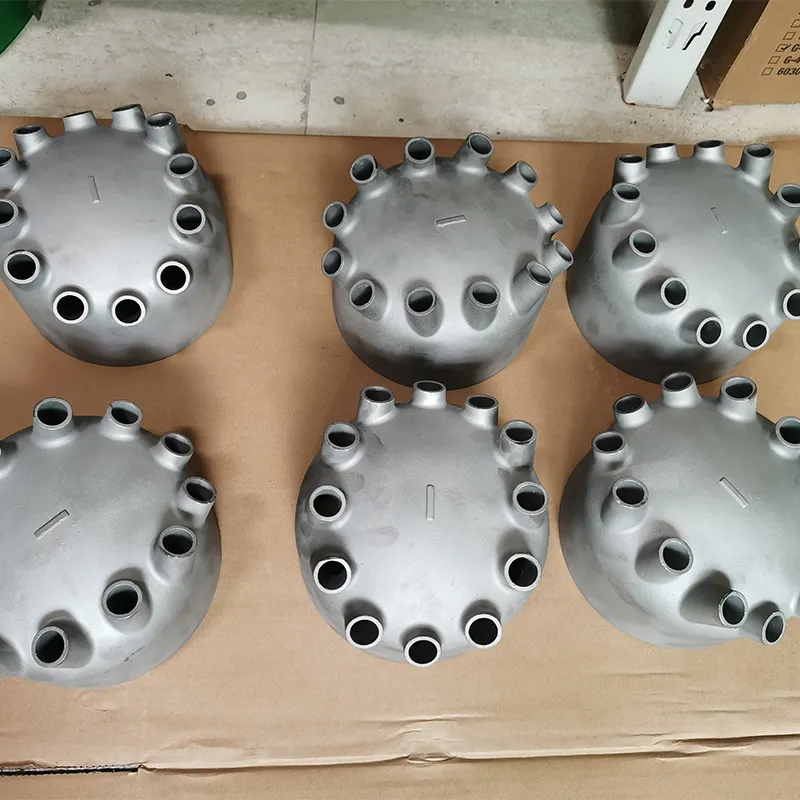

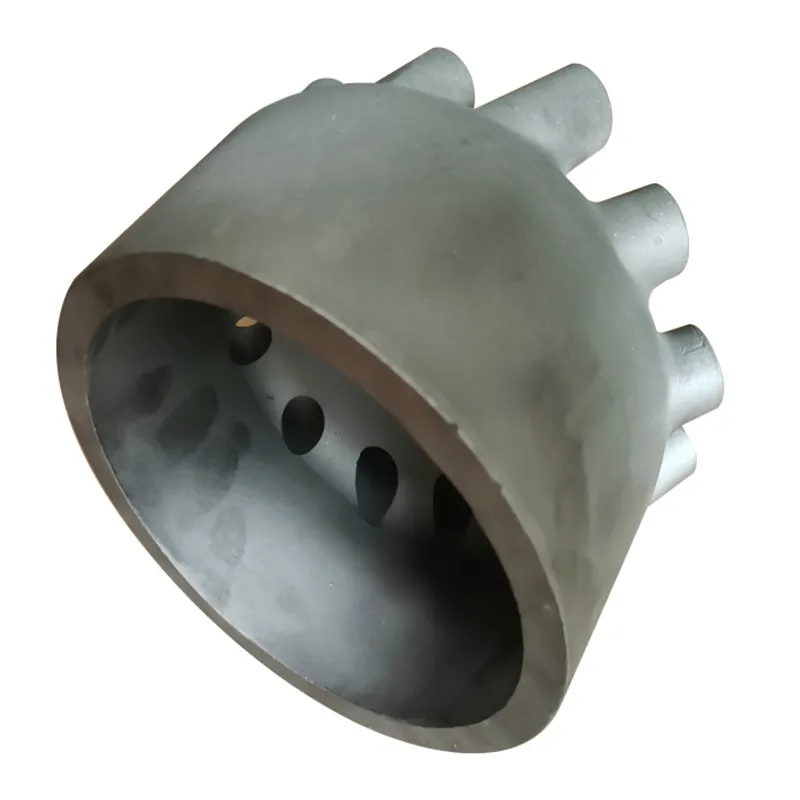

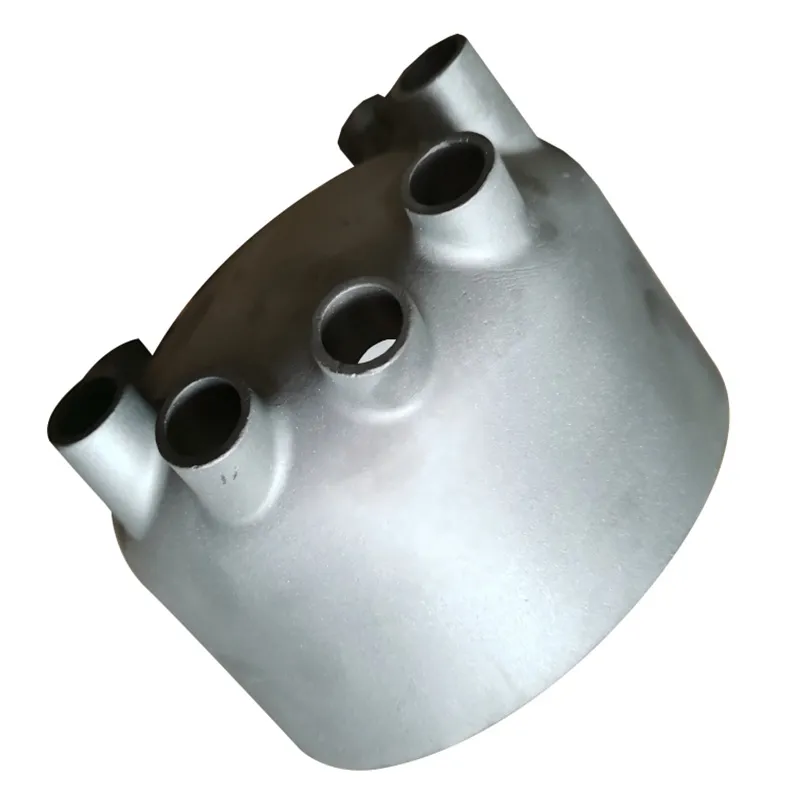

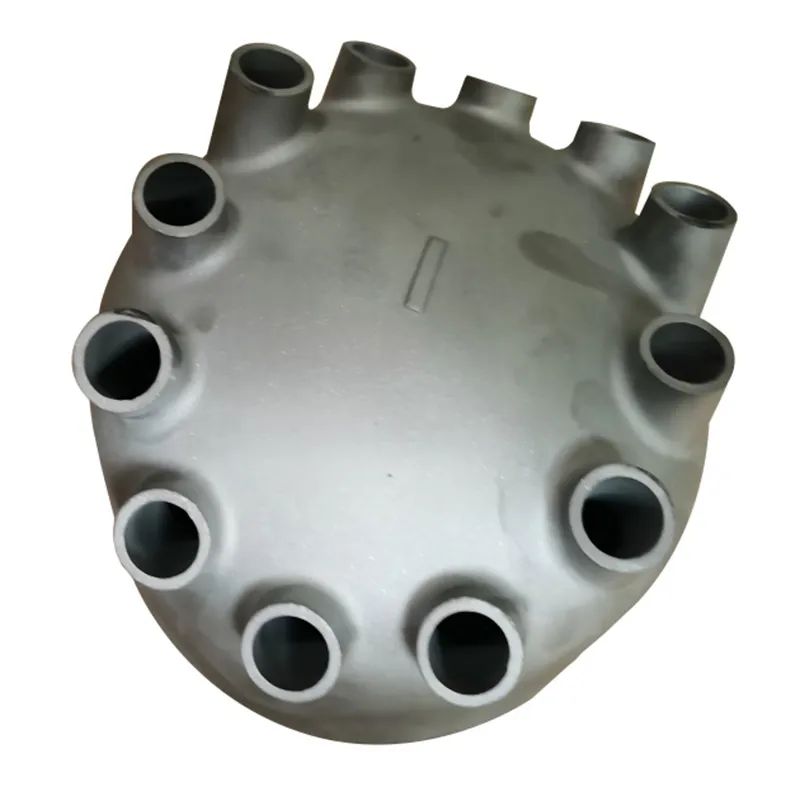

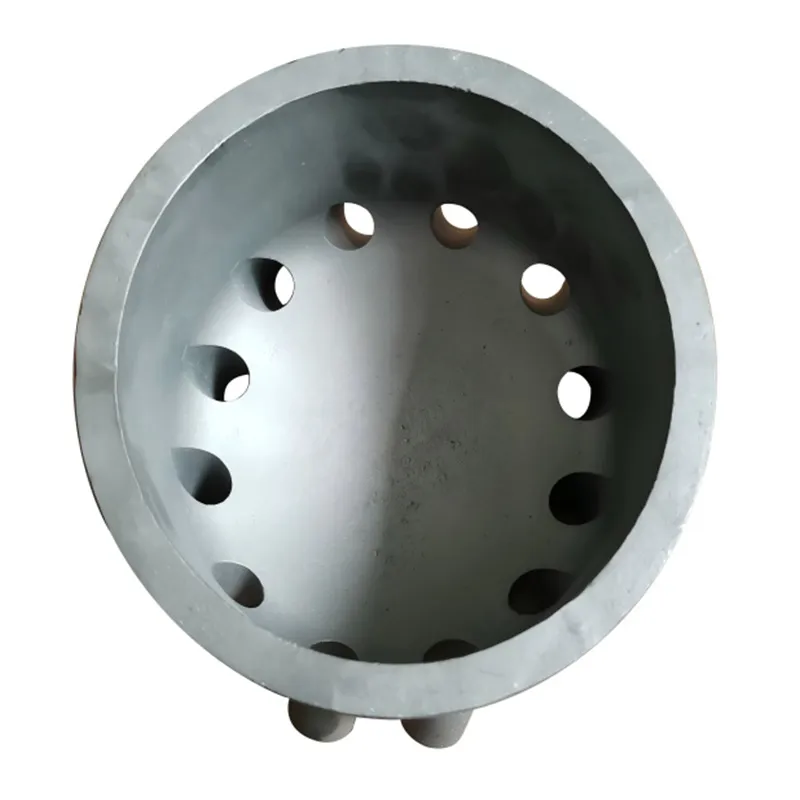

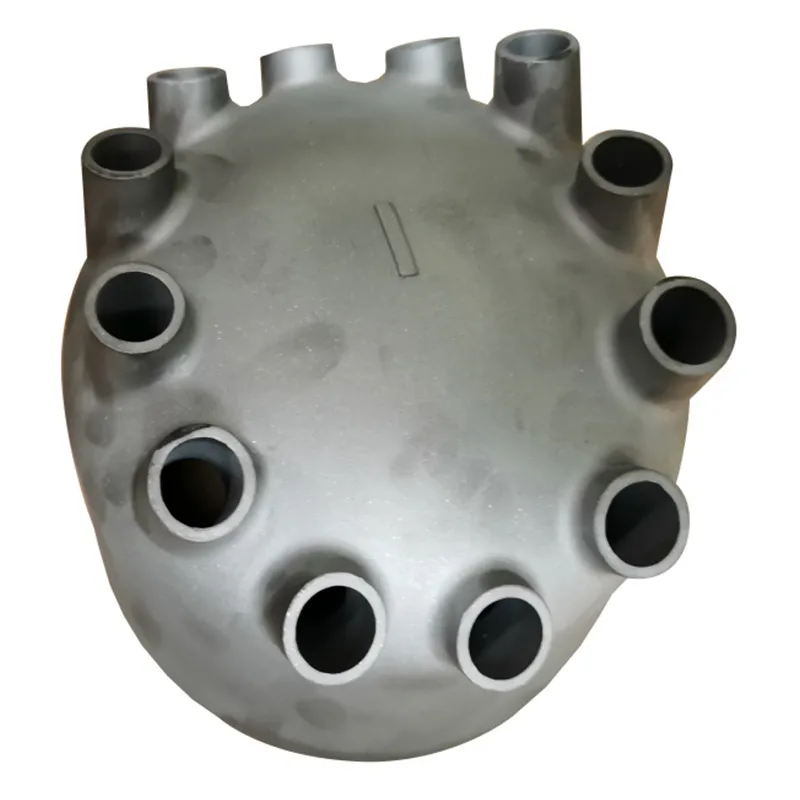

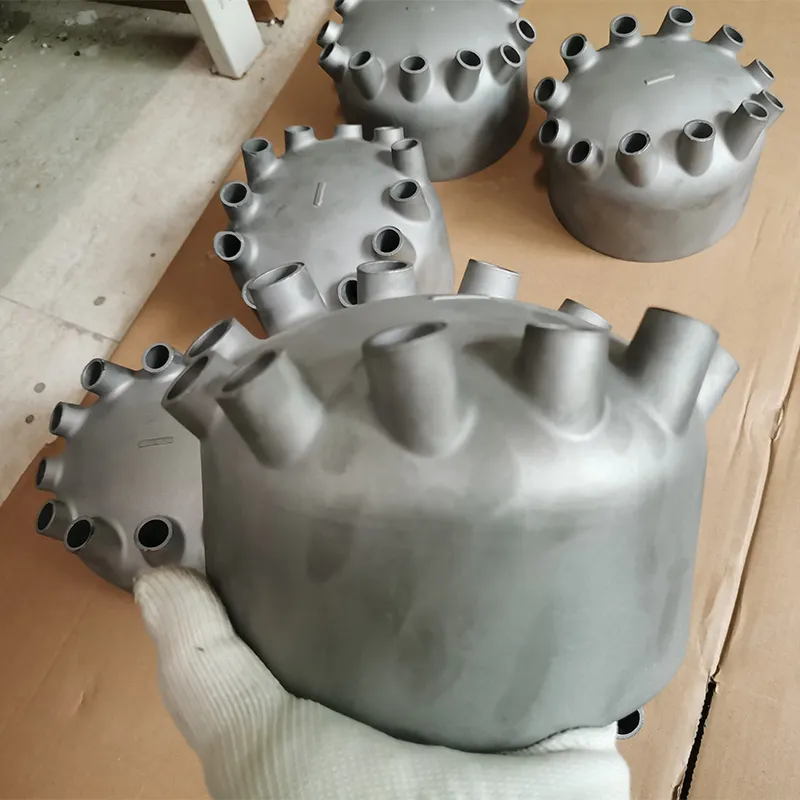

This part is a custom-made nozzle for a customer in the petrochemical industry, where conventional stainless steel materials are unsuitable due to the corrosive environment. The part is cast from alloy 6 material. The part is manufactured using the investment casting process, which allows for the production of complex and precise castings.
Material Composition and Mechanical Properties:
1.Alloy 6 Composition Table
| Chemical Composition | ||||||
| Elements | C | Mn | Si | Cr | Ni | Mo |
| Percentage(%) | 0.9-1.4 | ≤ 1.0 | ≤ 1.5 | 27.0-31.0 | ≤ 3.0 | ≤ 1.5 |
| Elements | W | Fe | P | S | Co | |
| Percentage(%) | 3.5-5.5 | ≤ 3.0 | ≤ 0.04 | ≤ 0.04 | Bal. | |
2.Mechanical Properties
(1).Tensile Strength (T.S): 793-896 MPa
(2).Yield Strength (Y.S): 541-662 MPa
(3).Elongation (E.L): ≤ 2%
(4).Hardness: HRC 37-45
