Pump foundation

Product Description: We produce professional high-precision piston pump parts for a very famous paint spraying equipment manufacturer in Europe. The material used for the parts is 1.4112 stainless steel. 1.4112 is a high-carbon martensitic stainless steel with ultra-high hardness, high wear re...

Send request

 

Description

marker

Product Description:

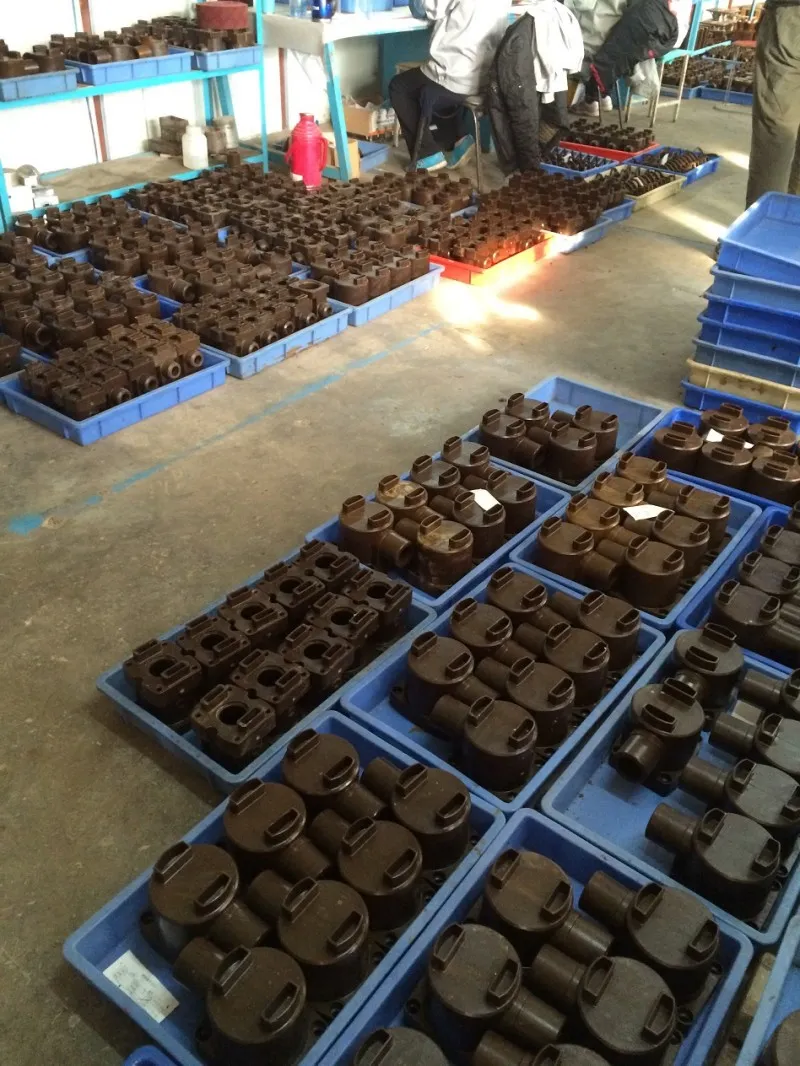

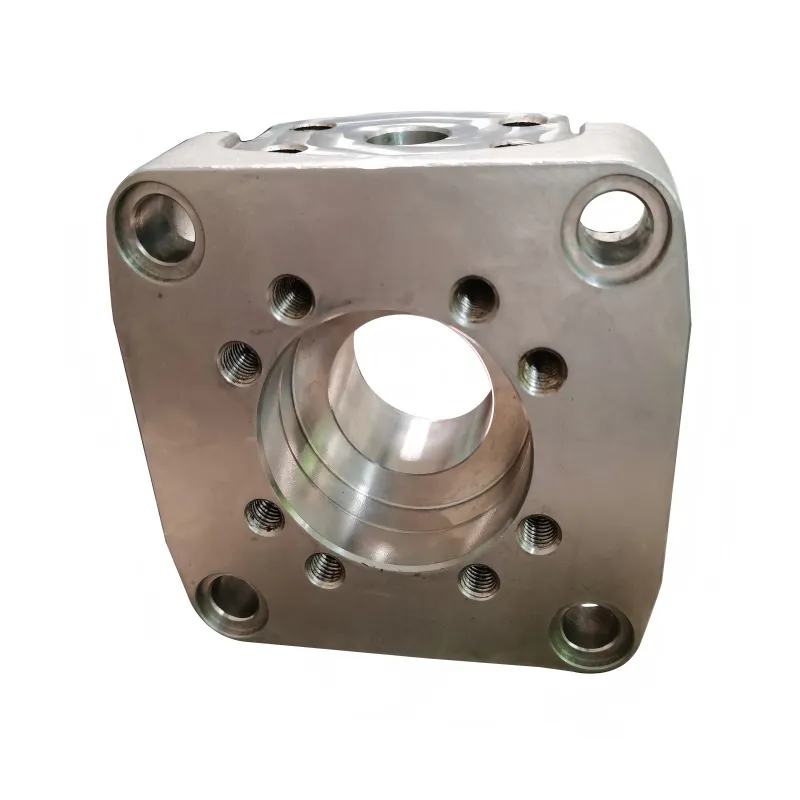

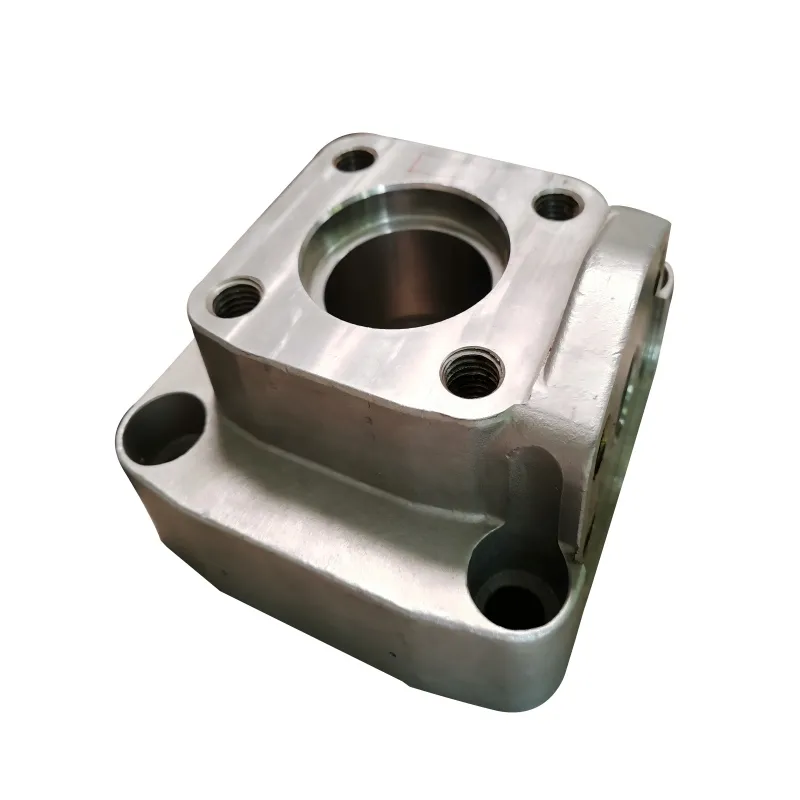

We produce professional high-precision piston pump parts for a very famous paint spraying equipment manufacturer in Europe. The material used for the parts is 1.4112 stainless steel. 1.4112 is a high-carbon martensitic stainless steel with ultra-high hardness, high wear resistance and good corrosion resistance. This base part is manufactured by the lost-wax precision casting process and needs to undergo an air tightness test after production.

Material Composition and Mechanical Properties Parameters:

1.4112 Stainless Steel Composition Table

Chemical Composition
Elements	C	Mo	Cr	V	Si	P	S	Mn	Fe
Percentage(%)	0.85-0.95	0.9-1.3	17.9-19.0	0.07-0.12	≤ 1.0	≤ 0.04	≤ 0.03	≤ 1.0	Bal.

Mechanical Properties:

Tensile Strength (T.S): ≥590 MPa

Yield Strength (Y.S): ≥245 MPa

Elongation (E.L): ≥15%

Brinell Hardness (HB): 230 - 255

After heat treatment, the mechanical properties of the material will change significantly. Hardness can reach 58-60 HRC, tensile strength can reach 750-950 MPa, and yield strength can exceed 550 MPa.
